Images are for illustrative purposes only. Actual product may vary.

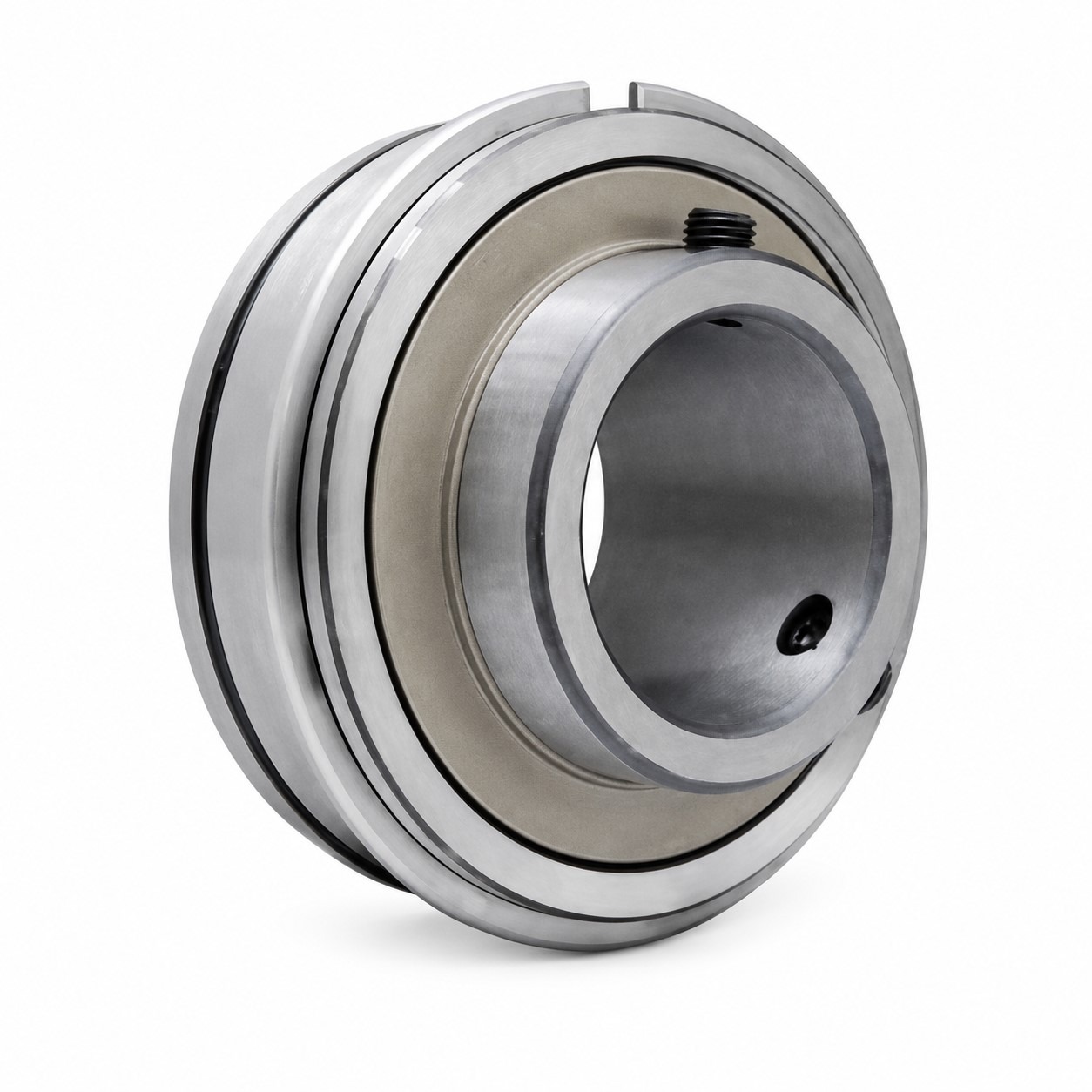

FYH ER207 Insert Bearing (Snap Ring) 35 mm Bore
FYH ER207 wide inner ring set screw insert bearing with snap ring, cylindrical OD. 35 mm bore x 72mm OD x 42.9mm width. Dynamic load 25.7kN.
Product successfully added to the Quote List
- Available in metric and inch bores
- Fits cylindrical-bore housings
- Manufactured by FYH to JIS standards
- Pre-lubricated and sealed
- Set screw shaft locking
- Wide inner ring insert with cylindrical OD and locating snap ring
| Brand | FYH |
|---|---|
| Bearing Type | Insert Bearing (Snap Ring) |
| Series | ER200 |
| Bore Size | Metric |
| Inner Diameter (Bore) | 35 mm |
| Outer Diameter | 72 mm |
| Width | 42.9 mm |
| Outer Ring Type | Cylindrical OD with Snap Ring |
| Seal Type | Contact Seal (Both Sides) |
| Locking Type | Set Screw |
| Set Screw Size | M8×1 |
| Material | Chrome Steel |
| Dynamic Load Rating (Cr) | 25.7 kN |
| Static Load Rating (C₀) | 15.4 kN |
| Weight | 0.63 kg |
| Features & Benefits | Available in metric and inch bores Fits cylindrical-bore housings Manufactured by FYH to JIS standards Pre-lubricated and sealed Set screw shaft locking Wide inner ring insert with cylindrical OD and locating snap ring |
FYH ER207 Insert Bearing
The FYH ER207 is a wide inner ring insert ball bearing (extended inner ring both sides) with a cylindrical outer race and a locating snap ring groove. It locks onto the shaft with set screws and suits a 35 mm shaft with a 72mm outside diameter.
Load Ratings
Basic dynamic load rating (Cr): 25.7 kN. Basic static load rating (C0r): 15.4 kN.
Manufactured by FYH (Nippon Pillow Block Mfg. Co., Ltd.) – Japan’s oldest and largest maker of mounted ball bearing units, producing to JIS standards since 1950.
Substitute Products
-
SSUC207
FYH SSUC207 Stainless Wide Inner Ring Insert Bearing 35 mm Bore
35 mm × 72 mm × 42.9 mm · Contact Seal (Both Sides)
Product successfully added to the Quote List
-
UC207L3
FYH UC207L3 Triple Lip Wide Inner Ring Insert Bearing 35 mm Bore
35 mm × 72 mm × 42.9 mm · Triple Lip (L3)
Product successfully added to the Quote List
-
UC207

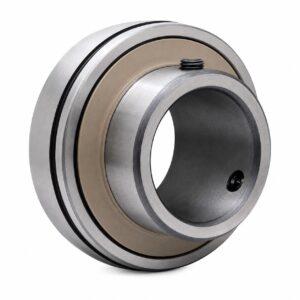

FYH UC207 Wide Inner Ring Insert Bearing 35 mm Bore
